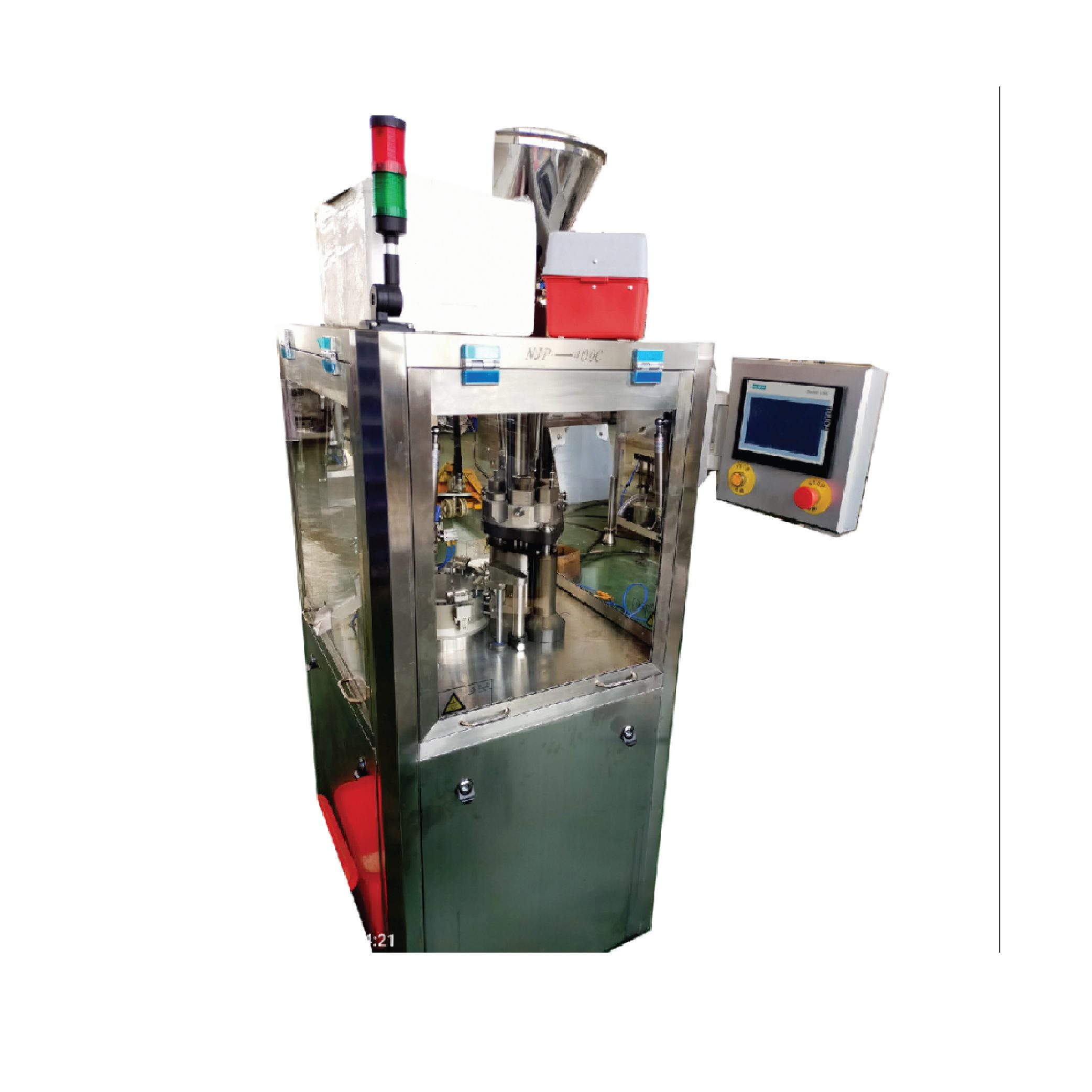

NJP-400C Fully Automatic Capsule Filling Machine

The NJP-400C automatic capsule filling machine, as a perfect upgrading alternative for semi-automatic capsule filling machine, has been widely used in hospitals, colleges, pharmaceutical research institutes, and labs of big pharmaceutical enterprises.

This is the smallest automatic capsule filling machine of our company, which has two models: NJP-200C and NJP-400C. The working frequency, size and weight of these two models are the same, and the difference lies in the number of holes of the mold. NJP-200C has 2 holes and NJP-400C has 3 holes. The relative output of NJP-400C will be larger.

Features of  Fully Automatic Capsule Fillling Machine

• Small in size, light in weight, energy savings, easy to operate, and clean.
• The opening and locking of capsules can be controlled automatically which is safe and convenient.
• Equipped with an inching control system, which makes it easy and convenient for cleaning, loading, and unloading upper and lower dies.
• Equipped with gate control security system and mechanical failure security system, which provides functions of automatic alarm and shutdown.
• An automatic alarm and shutdown will be activated when lacks an empty capsule or powder.
• Rich functions are designed on the HMI, including counting and displaying functions during the production, and it is able to link with printer, if needed, for printing information including date of production, lot number, quantity, etc.
• The plane cams are running in the mode of double rails, where the two axes run out separately. It can improve the operation accuracy and meanwhile eliminate the possibility of collision between the lower die and the dosage disc.
• The high precision cam splitter uses optical dividing head of German Zeiss. The dividing spindle is machined in the CNC all at once, which has ensured accuracy dividing of the turntable and dosage disc while the machine runs fast, thus ensuring the precision of filling. Higher precision of cam splitter also provides the machine longer service life.
• The operating cams are all processed with 20crmoti carburizing and quenching treatment, and then machined in CNC grinding machine all at once, which has ensured the accuracy and unity of the cams and provided a longer service life.
