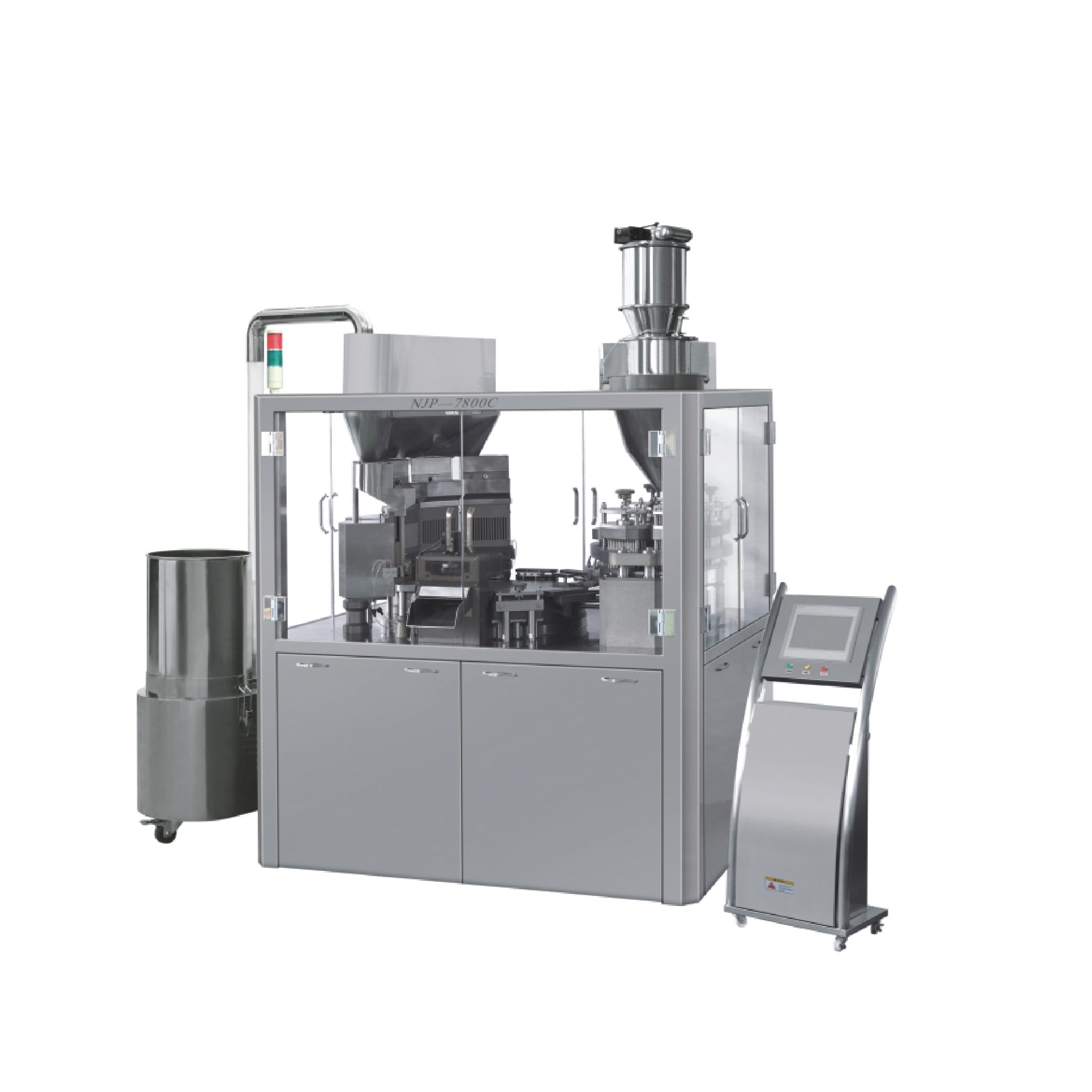

NJP-7800 Fully Automatic Capsule Filling Machine

The NJP-7800C automatic capsule filling machine is a high-speed type. It is new model and can produce 7800 capsules per minute. This machine adopts full internal cam transmission mechanism, which has the stable high-speed operation and long service life

The NJP-7800C full automatic capsule filling machine is suitable for filling the full-size capsules, that is covering from #000 capsules to #5 capsules can be completed. The part of the machine in contact with drugs is made of 316 stainless steel, and the wear mechanism adopts hardening heat treatment, which conforms to GMP standards. It is suitable for medium and large pharmaceutical companies and health care products companies.

Features of  Fully Automatic Capsule Fillling Machine

• Small in size, light in weight, energy savings, easy to operate, and clean.
• The opening and locking of capsules can be controlled automatically which is safe and convenient.
• Equipped with an inching control system, which makes it easy and convenient for cleaning, loading, and unloading upper and lower dies.
• Equipped with gate control security system and mechanical failure security system, which provides functions of automatic alarm and shutdown.
• An automatic alarm and shutdown will be activated when lacks an empty capsule or powder.
• Rich functions are designed on the HMI, including counting and displaying functions during the production, and it is able to link with printer, if needed, for printing information including date of production, lot number, quantity, etc.
• The plane cams are running in the mode of double rails, where the two axes run out separately. It can improve the operation accuracy and meanwhile eliminate the possibility of collision between the lower die and the dosage disc.

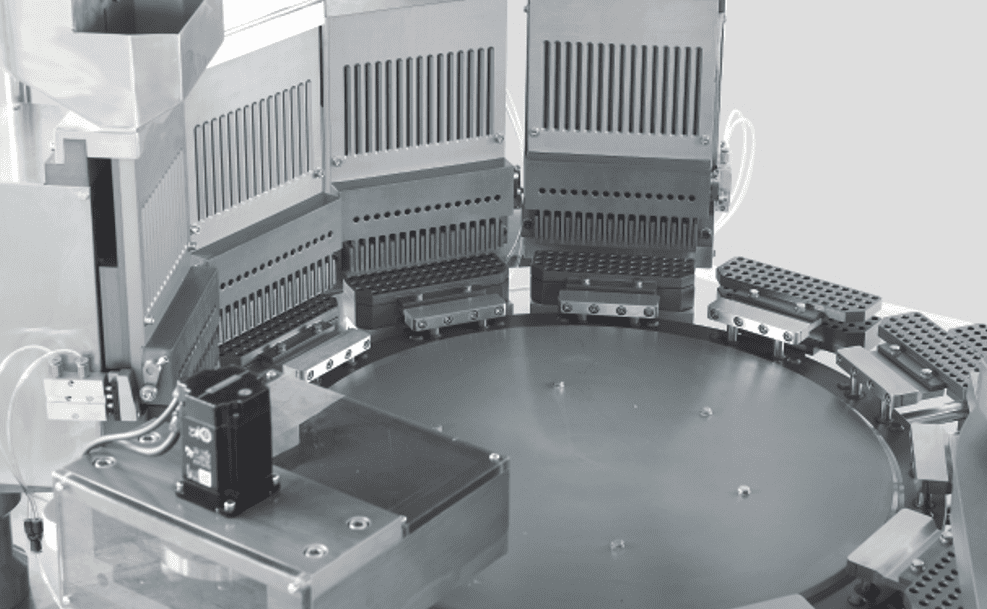

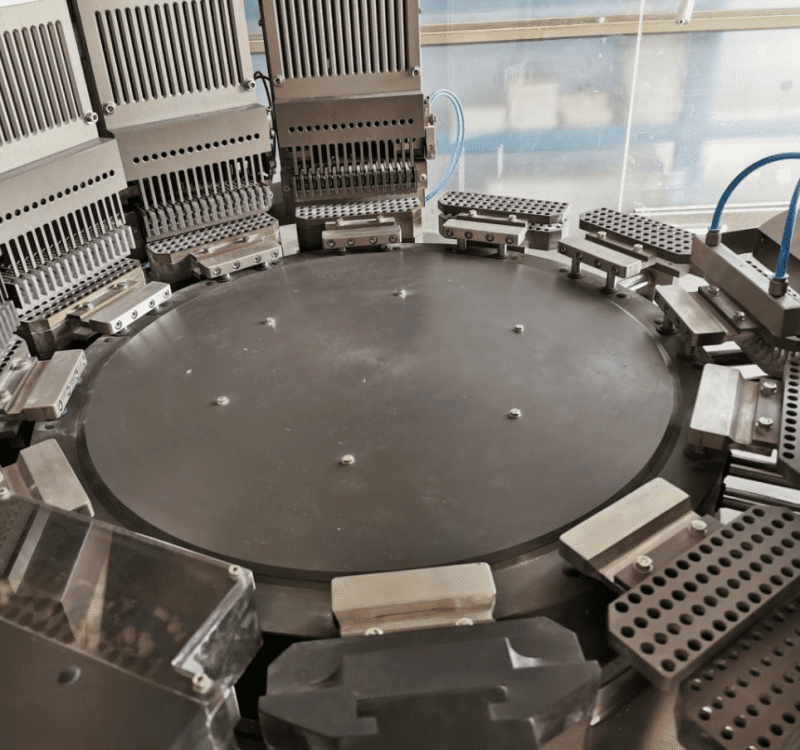

• The high precision cam splitter uses optical dividing head of German Zeiss. The dividing spindle is machined in the CNC all at once, which has ensured accuracy dividing of the turntable and dosage disc while the machine runs fast, thus ensuring the precision of filling. Higher precision of cam splitter also provides the machine longer service life.
• The operating cams are all processed with 20crmoti carburizing and quenching treatment, and then machined in CNC grinding machine all at once, which has ensured the accuracy and unity of the cams and provided a longer service life.
